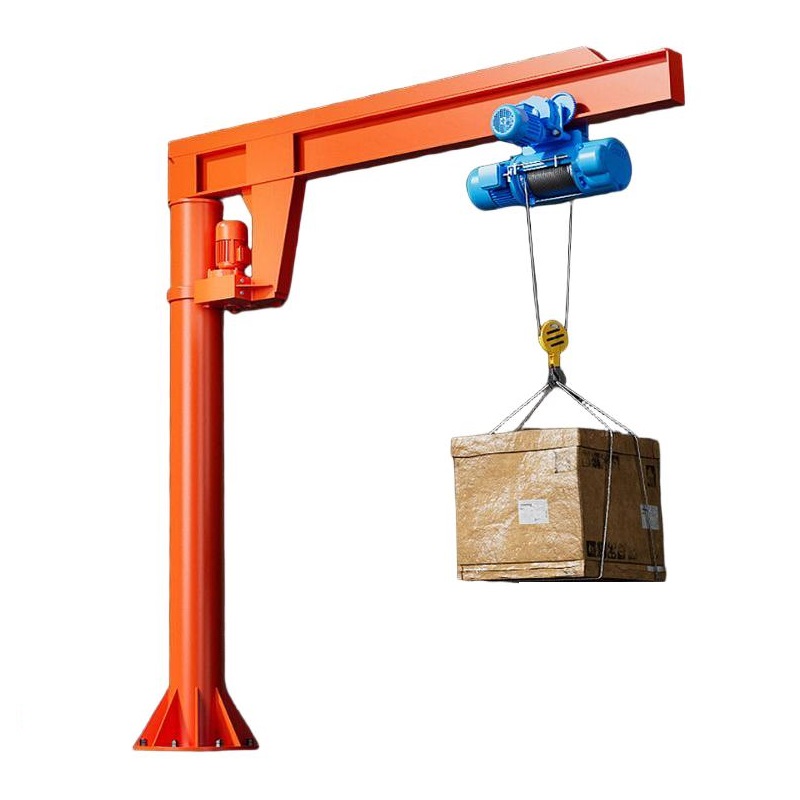

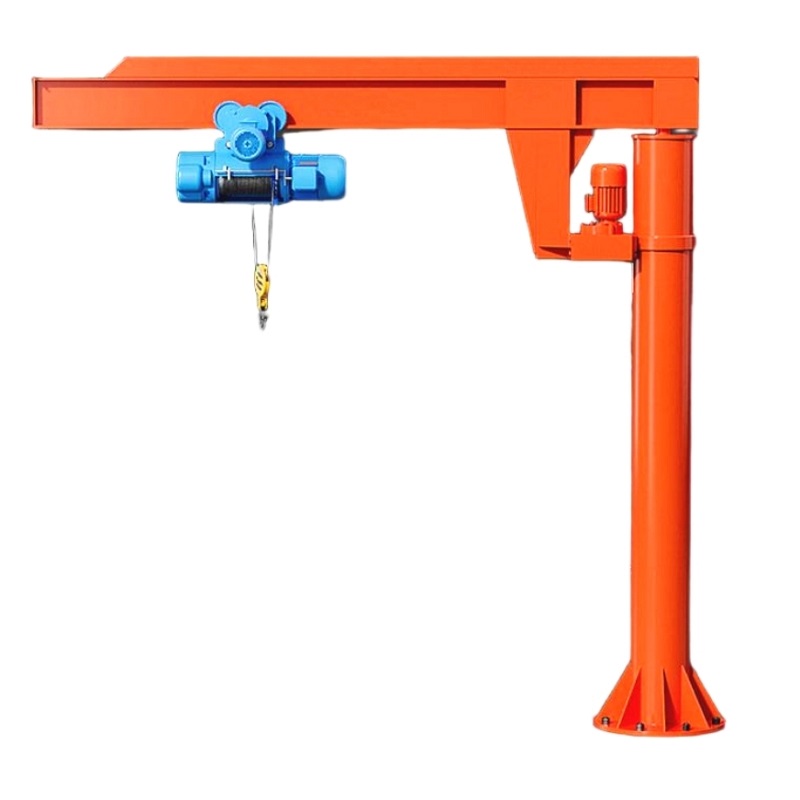

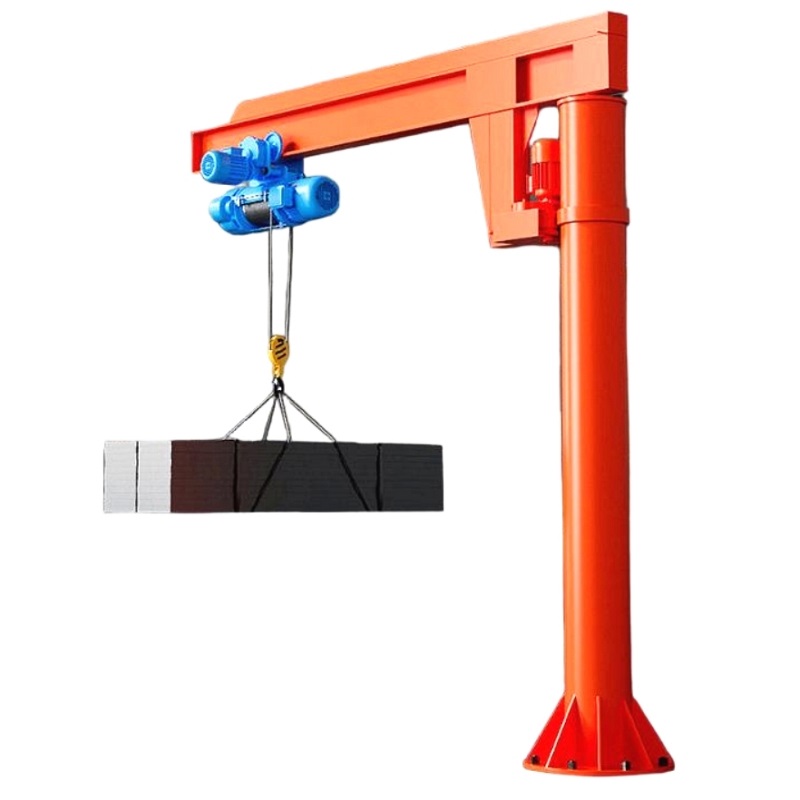

Model BZD Fixed Column Type Jib Crane

The Model BZD Fixed Column Type Jib Crane is a compact, space-saving lifting solution designed for workshops, warehouses, production lines, and outdoor material handling sites. Available in both electric and manual operation modes, it delivers precise, flexible lifting of loads from 200kg to 3000kg. Its fixed-column design and 360° rotatable jib enable efficient coverage of localized work areas, making it ideal for short-distance, frequent lifting tasks such as component assembly, equipment maintenance, and material transfer.

Company Profile

Hebei Tieshou Hoisting Machinery Manufacturing Co., Ltd. is a professional lifting equipment manufacturer with over 20 years of experience in design, production, and export. We specialize in chain blocks, lever hoists, electric chain hoists, wire rope hoists, hand winches, magnet lifters, mini cranes, G80 lifting chains, and rigging accessories.
Our products are widely used in construction, manufacturing, logistics, and warehouse industries, known for safety, durability, and reliable performance. Certified with ISO9001, CE, and GS, Tieshou ensures every product meets international standards.

With advanced facilities, experienced technicians, and a professional sales team, we provide OEM & ODM services and customized lifting solutions for global clients. Tieshou is committed to quality, innovation, and long-term cooperation with partners worldwide.

Model BZD Fixed Column Type Jib Crane Introduction

Core Specifications  There are two types Manual and Electric, both designed for efficient material handling in limited spaces. The manual version offers simplicity and reliability with smooth 360° rotation, while the electric model provides enhanced productivity through motorized hoisting and traversing functions. Both types support customizable boom lengths, load capacities ranging from 0.5 to 10 tons, and robust structural design ensuring long-term durability. Ideal for workshops, warehouses, and production lines.
Jib Length: 3m (customizable)
Column Height: 3m (customizable)
Rated Lifting Capacity: 200–3000KG
Slewing Speed: 0.6–0.75r/min
Slewing Range: 360°
Operation Mode: Electric / Manual (dual options)
Customization: Fully supported for jib length, lifting capacity, and control systems
Configuration Options
Electric Version: Equipped with a pure copper motor and electric bearing for smooth 360° rotation, reducing manual labor and improving efficiency.

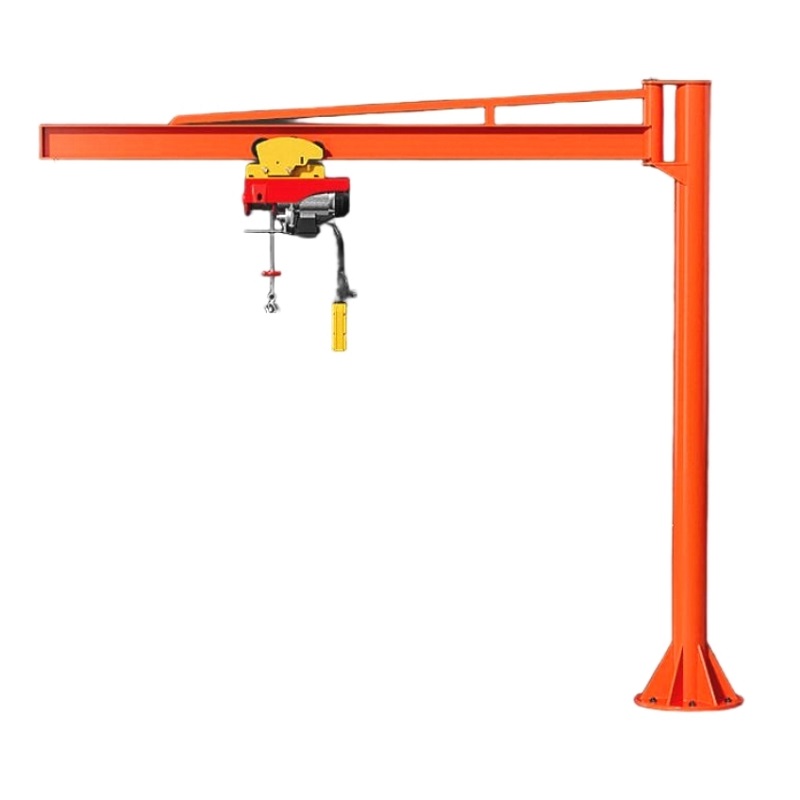

Manual Version: A cost-effective choice for low-frequency lifting tasks, relying on hand-cranked operation for precise positioning.

Motor Compatibility: The crane’s modular design supports a variety of motor combinations, allowing adaptation to diverse working environments and load requirements.

Crane Parameter：

Model	BZ2-5	BZ3-5	BZ5-4	BZ3-10
Rated lifting capacity（t）	2	3	5	3
Up-down Speed（m/min）	4	8	8	8
L（mm）	5270	5000	4185	10000
R2（mm）	5000	5000	4000	9740
R1（mm）	1200	1500	1800	1380
H（mm）	4200	5550	4700	6800
H1（mm）	3000	4000	3000	5000

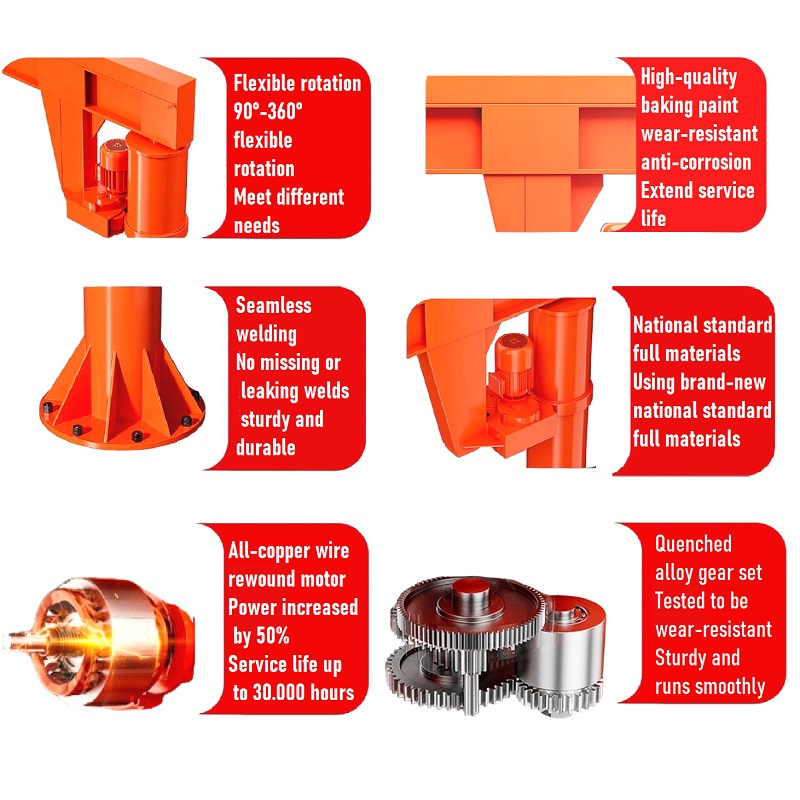

Model BZD Fixed Column Type Jib Crane Features

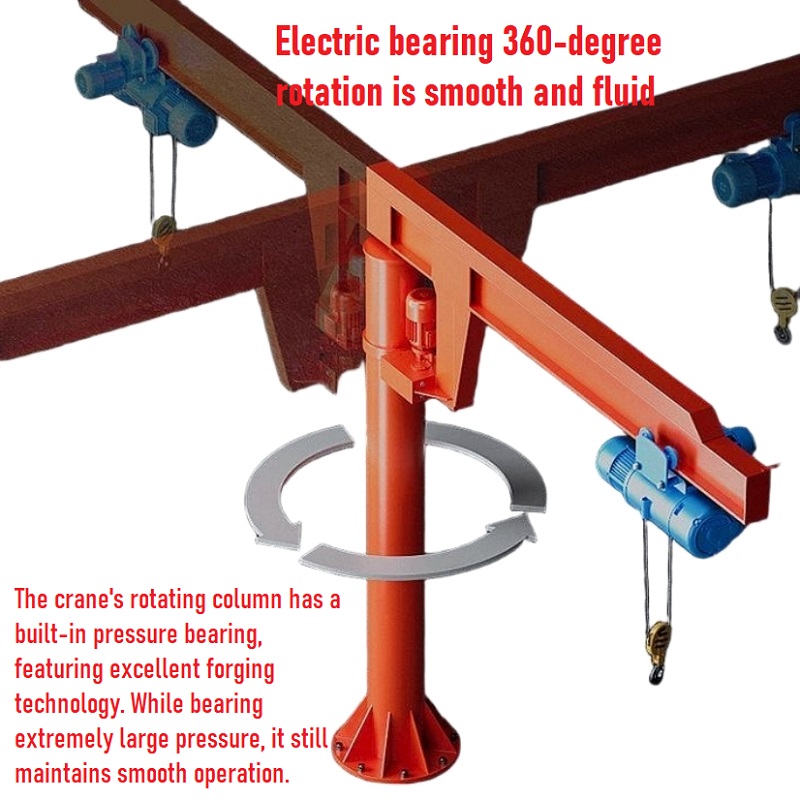

·  Flexible & Precise PositioningThe jib offers 90°–360° smooth rotation, with a built-in pressure bearing in the rotating column to ensure stable, friction-free movement even under heavy loads.
·  Durable Anti-Corrosion CoatingAdopts a premium high-temperature baking finish. The steel surface undergoes plastic spraying and heat treatment, providing long-lasting protection against corrosion, wear, and rust for extended service life.
·  Robust Welding & Structural StrengthFeatures seamless welding technology on key load-bearing components, paired with national standard high-strength steel materials. The thickened national standard column and enlarged stable base ensure exceptional load-bearing capacity and operational safety.
·  High-Quality Core ComponentsIntegrates quenched gears, dual pressure bearings, and pure copper motors for reliable performance. These components deliver ultra-high load capacity, low noise, and resistance to wear, ensuring long-term stability.
·  Strong Compatibility & AdaptabilityThe modular design supports multiple motor combinations, enabling customization for specific working conditions. It is suitable for both indoor workshops and outdoor construction sites, adapting to dust, humidity, and temperature variations.
·  Easy Installation & MaintenanceThe fixed-column structure requires minimal foundation preparation, and the standardized components simplify on-site assembly. The corrosion-resistant coating and sealed bearings also reduce routine maintenance needs.
