Heavy Duty Stainless Steel Hand Winch

Heavy-duty stainless steel hand winch  Description：

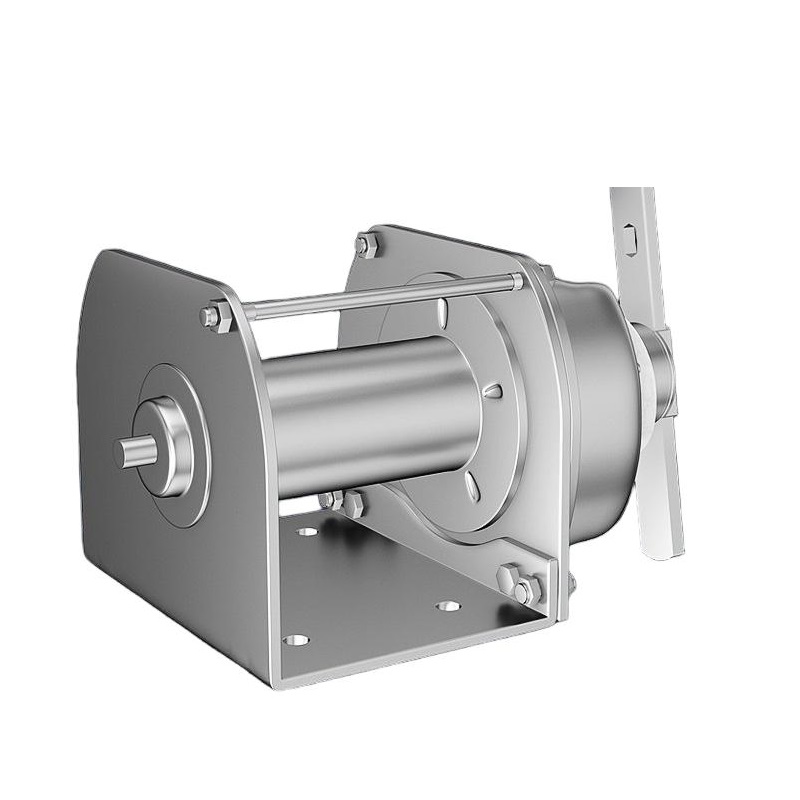

This heavy-duty stainless steel hand winch is a high-performance, durable lifting and pulling tool engineered for demanding industrial, marine, and outdoor applications. Crafted from premium 304 stainless steel, it boasts exceptional corrosion resistance, rust prevention, and structural stability, making it suitable for use in humid, salty, or harsh environments where ordinary winches are prone to degradation. With a rated load capacity of 1 ton and a robust mechanical structure, this winch delivers reliable power transmission and precise control, enabling efficient lifting, pulling, positioning, and securing of heavy objects. Whether for construction sites, boat docking, off-road recovery, or warehouse operations, it serves as a trustworthy auxiliary tool that combines strength, longevity, and ease of operation.

Company Profile

Hebei Tieshou Hoisting Machinery Manufacturing Co., Ltd. is a professional lifting equipment manufacturer with over 20 years of experience in design, production, and export. We specialize in chain blocks, lever hoists, electric chain hoists, wire rope hoists, hand winches, magnet lifters, mini cranes, G80 lifting chains, and rigging accessories.
Our products are widely used in construction, manufacturing, logistics, and warehouse industries, known for safety, durability, and reliable performance. Certified with ISO9001, CE, and GS, Tieshou ensures every product meets international standards.
With advanced facilities, experienced technicians, and a professional sales team, we provide OEM & ODM services and customized lifting solutions for global clients. Tieshou is committed to quality, innovation, and long-term cooperation with partners worldwide.

Heavy-duty stainless steel hand winch   Introduction

Designed with practicality and durability in mind, this hand winch integrates advanced mechanical principles to ensure optimal performance. It features a precision-engineered gear system with a gear ratio of 12.25:1, which effectively reduces manual effort—requiring only 120N of hand force to handle heavy loads, significantly lowering operational fatigue. The winch is compatible with 8mm diameter steel wire rope, supporting a maximum rope length of 40 meters (with customizable options of 5m, 10m, 15m, 20m, 30m, and 40m) to adapt to different working distance requirements. The 350mm left-right connecting rod design provides a comfortable grip and leveraged operation, while the integrated self-locking brake system ensures instant locking when the hand lever is released, preventing accidental slipping of loads and guaranteeing operational safety. The winch is available in both bare machine (without wire rope and hook) and complete sets with wire rope, catering to diverse user needs.

304 Stainless Steel 1 Ton Hand Winch Specification Parameter Table

Model	Wirerope Length	Load	Test load	Applicable steel wire rope diameter	Applicable steel wire rope length	speed ratio	Left and right lengths of the connecting rod	Hand pulling force	N.W.
1 ton of bare machine	No	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	20KG
1 ton	5-meter steel wire rope	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	21KG
1 ton	10-meter steel wire rope	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	22KG
1 ton	15-meter steel wire rope	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	23KG
1 ton	20-meter steel wire rope	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	24KG
1 ton	30-meter steel wire rope	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	26KG
1 ton	40-meter steel wire rope	1T	12.25KN	8MM	40M	12.19:1	350MM	120N	29KG

Heavy-duty stainless steel hand winch    Features

Product Features

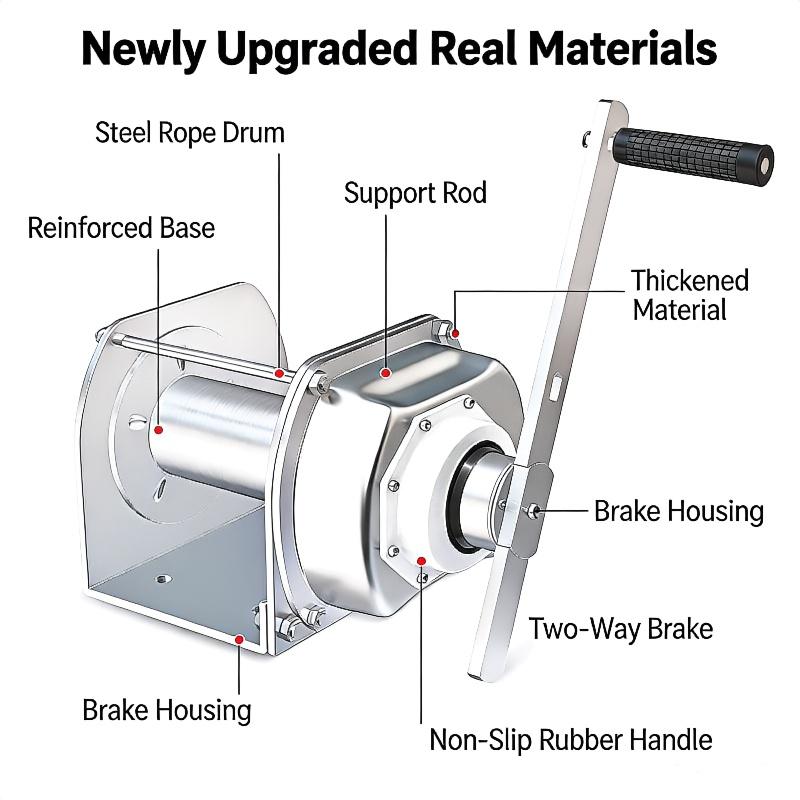

Premium Stainless Steel Construction: Made of high-quality 304 stainless steel, the winch body, gears, and key components offer superior corrosion resistance, rust proofing, and wear resistance, ensuring long-term service in harsh environments such as marine, coastal, or outdoor settings.
Heavy-Duty Load Capacity: Rated load of 1 ton with a test load of 12.25KN, featuring a sturdy structure that can withstand high tension and heavy loads, meeting the demands of industrial-grade lifting and pulling tasks.
Efficient Gear Transmission: Equipped with a 12.25:1 gear ratio and precision-machined gears, it achieves labor-saving operation, allowing users to handle heavy loads with minimal hand force, improving work efficiency and reducing fatigue.

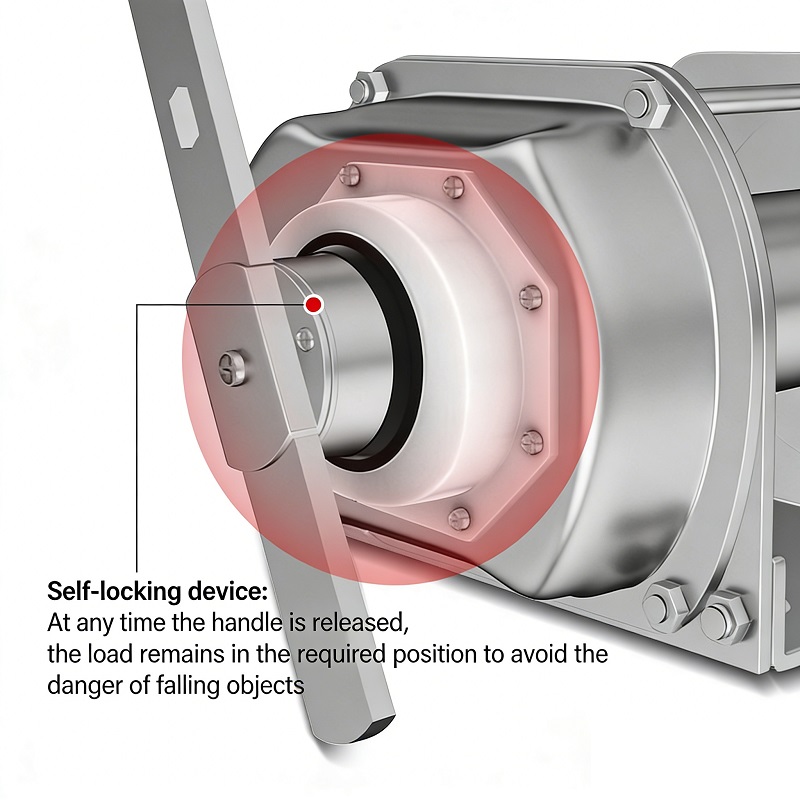

Reliable Safety Brake: Built-in self-locking brake system automatically locks the load when the hand lever is released, preventing accidental movement or slipping, ensuring the safety of operators and goods during use.

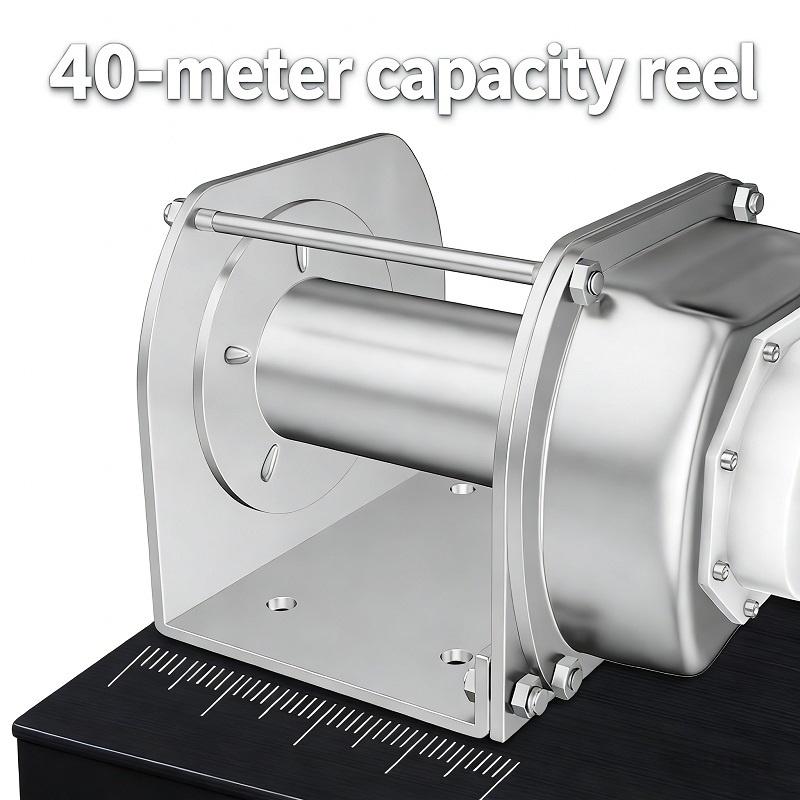

Versatile Compatibility & Customization: Compatible with 8mm steel wire rope, offering multiple rope length options (5m-40m) and bare machine/complete set configurations to fit various application scenarios and user requirements.

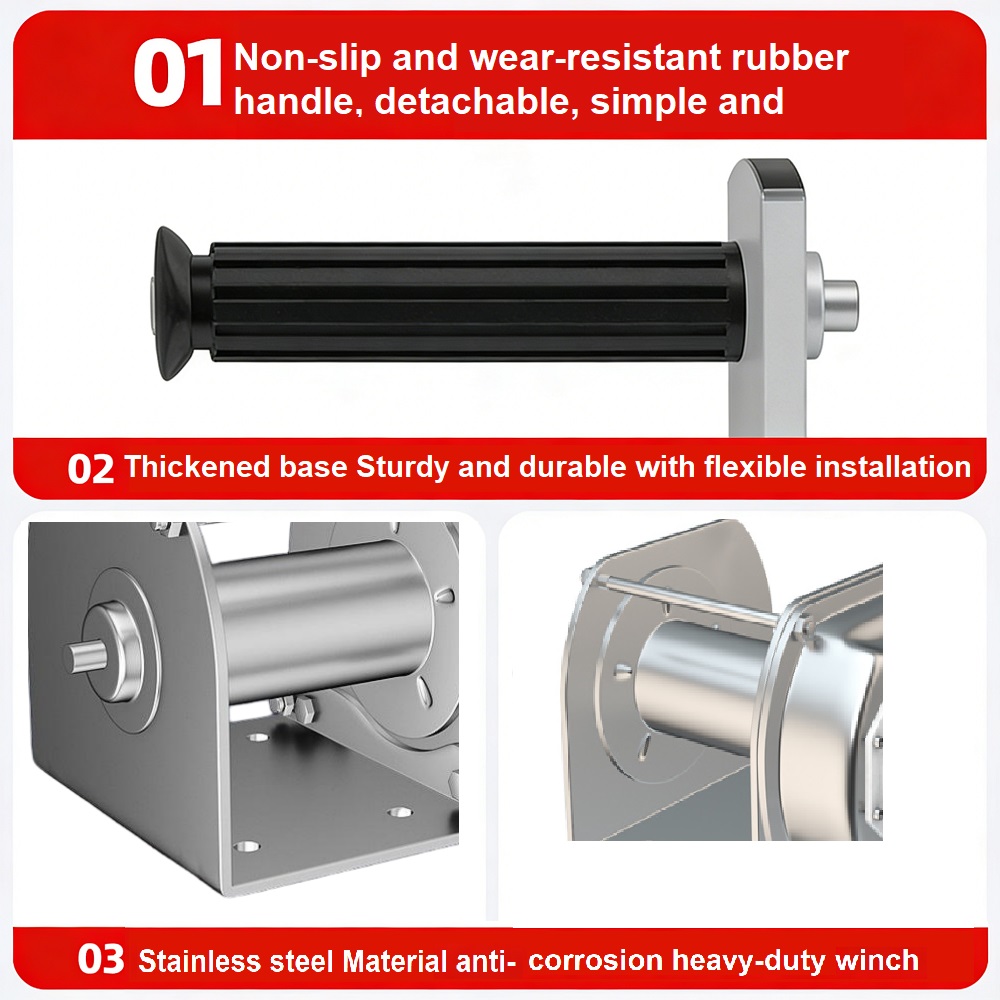

Durable & Easy to Operate: The 350mm connecting rod provides a comfortable grip and stable leverage, while the overall compact design (net weight 20-29KG depending on configuration) facilitates portability and installation in limited spaces.
